TypingDNA focuses on improving security and user experience through cutting-edge AI-based typing biometrics technology for seamless and reliable authentication and fraud prevention.
Our Verify 2FA and Authentication API solutions commonly replace traditional second factor authentication flows, enabling users to confirm their identity by typing, without the additional UX friction introduced by more traditional methods (such as phone-based methods).
Verify 2FA is designed to reduce reliance on phone-based 2FA/MFA methods in the user authentication process. A Verify 2FA integration allows you to offer typing verification as a second factor in flows where traditional phone-based methods would otherwise have been required.
With Verify 2FA, end-users prove their identity by typing generated 4-word text combinations. The original “Standard” integration also incorporates Root of Trust (RoT) channels (SMS & Email) for enrollment and fallback. However, the newer OIDC integrations work directly in IAMs such as Okta or Ping without the need to set up a separate RoT, fully relying on these IAMs built in MFA mechanisms for enrollment, fallback and/or password reset. The OIDC integration allows Verify 2FA to act as an External Authentication Method (EAM) that can be easily set up and used by corporate employees to avoid using traditional phone-based or unsecure methods.
Integrate Verify 2FA in under 10 minutes inside your web app. Follow along...
The OIDC-based integration allows IAM clients (using Okta, Ping Identity, and Microsoft Entra) to enable TypingDNA verification for MFA, 2FA, or password reset.
The integration can be set up within minutes and does not require coding, as shown in more detail below.
Available as an API-based standalone 2FA/MFA system that can be added to any password based authentication. The typing verification is conditioned by either an SMS or Email OTP as a RoT (Root of Trust). However, it can also be integrated without RoT.
Also, ForgeRock and Keycloak variants are available through direct API integration since the OIDC protocol is not supported yet. Please get in contact with our team if you require any one of these particular integrations, or others that are not listed.
The OIDC integration allows IAMs to add TypingDNA verification as a 2FA/MFA authentication method whenever your users log into your apps. In Okta, TypingDNA Verify 2FA can be added as an Authenticator to Okta MFA. In Ping Identity (PingOne and PingFederate) this can be done easily through PingOne DaVinci flows, although a direct OIDC integration is possible as well.
Please contact us to show you a demo and learn about your use case.
To integrate Verify 2FA OIDC, you will need to obtain credentials (OIDC Client ID & Secret). Sign up for a free account to get started, sign in to the Client Dashboard and create your first application to access your OIDC Client ID & Secret.
The Sandbox environment allows you to get familiarized with the TypingDNA Verify 2FA technology. The Sandbox environment is limited to a maximum of 100 users per month.
The Production environment is designed for live applications and is only available to Pro and Enterprise clients.
Here are the main settings available for OIDC integrations:
Depending on the setting, more additional settings may be available. Please note that some of these settings may not be available in your IAM. To make sure about it please contact our team to discuss your integration beforehand.
Thanks to the OpenID Connect IdP integration you will be able to start using TypingDNA as 2FA in your Okta in no time. The set up of the OIDC integration for Okta is very straightforward and explained in greater detail in this step-by-step tutorial.
Thanks to PingOne DaVinci flows you can add TypingDNA as an authentication factor in your Ping based applications. Here is a step-by-step tutorial. The integration is fast and TypingDNA can be added to any type of authentication flow, 2FA, MFA, password reset, risk authentication, etc. Direct OIDC integration is also possible.
We're constantly working on adding support for other platforms. If you are particularly interested in an integration with a different platform please let us know.
For the moment there are various working integrations of TypingDNA as 2FA with platforms like Okta, Ping Identity, ForgeRock, Microsoft Entra ID, Keycloak, CyberArk, Optimal IDM, WSO2.
TypingDNA Verify 2FA Standard integration is designed to reduce the number of SMS/email 2FA codes required to be sent to your users, replacing them with in-browser, secure typing biometric verification when possible. While it is possible to only use TypingDNA Verify 2FA Standard as a delegated single factor (without RoT, see Integrate Backend section), the default Standard integration comes with included control for the RoT channel (SMS/email OTP).
To launch the secure Verify 2FA service from within an application, you have to integrate a TypingDNA backend client, a frontend JavaScript client and an HTML snippet that renders a button or an iframe. The backend client passes the required data attributes to the frontend, linking them via HTML attributes on the button or the iframe element. When an end-user interacts with the button or when the iframe is created, these values are passed to the Verify 2FA service to validate the session.
For the RoT version, there are three scenarios in which typing biometrics verification is not possible, and traditional SMS/email verification codes are sent.
How encrypted end-user data and verification results flow between your backend, frontend and the Verify 2FA window service depends on the flow you have chosen when initializing the TypingDNAVerifyClient
object in the backend. There are two available flows, which to choose depends on UX preference:
Through Standard mode, the flow is simplified for the end-user, as the internal OTP is automatically passed from Verify 2FA to your application. To implement the Standard mode, a callback function has to be included in the data attributes of the HTML button or iframe through which the TypingDNA Verify 2FA service is started (see Integrate Backend). After the user has attempted typing verification in the Verify 2FA window, if the user's pattern is verified successfully, a verification code is returned as a parameter to the callback function. If the user fails verification, the error message is passed in the same parameter.
The Show OTP mode requires more end-user interaction, as they must copy and paste the OTP code provided by the Verify 2FA pop-up window or iframe, into an input that you'll have to provide. The Show OTP mode is only meant as a decoupled authenticator. We recommend that you discuss with the TypingDNA team beforehand if you're considering using this mode.
In both modes, in order to finalize the flow, call the typingDNAVerifyClient.validateOTP() method to confirm the authenticity of the verification code using TypingDNA's validation service. This method requires both the user identifier and code as parameters (see Backend public methods
section for details). If the code is valid a success message will be returned. Otherwise, the code validation service will return a failure to validate message.
To integrate Verify 2FA Standard, you will need to obtain credentials (Client ID & Secret) and create your first application. Sign up for a free account to get started, and sign in to the Client Dashboard for access to your Client ID & Secret.
The Sandbox environment allows you to get familiarized with the TypingDNA Verify 2FA technology. The Sandbox environment is limited to a maximum of 100 users per month.
The Production environment is designed for live applications and is only available to Pro and Enterprise clients. If you're going to use the Standard integration with RoT, you will also need to configure your account by connecting to your providers for email and SMS OTP.
Below are the steps required within the dashboard to configure a Verify 2FA Standard account before beginning the integration process:
If Verify 2FA runs in RoT mode, TypingDNA will only provide the first 200 one-time passwords (OTP) in the Sandbox environment. After that, a corresponding channel provider account must be linked from within the Verify Dashboard. In both Sandbox and Production environments, these gateways will be used on your behalf to send OTP verification codes to the users via email (Sendgrid) or SMS (Twilio).
Failure to connect a channel account, after the first 200 OTP codes are sent, will result in an error message if an attempt is made to verify or enroll a user through that channel. Any traffic limitations that your gateway provider accounts are subject to, will affect the Verify 2FA flow, if reached.
In order to send SMS verification codes on your behalf, we require you to associate a Twilio account with your TypingDNA account. Click the Connect to Twilio button within the Dashboard to provide us the required credentials and test the connection.
To support email verification codes, a Sendgrid account must be associated with your account. Click the Connect to Sendgrid button within the Verify 2FA Dashboard to provide us the required credentials and test the connection.
All user enrollment and verification activity in Verify 2FA occurs within the context of an Application. To create your first application, click on the Add your first integration button from within the Dashboard.
Each Application requires a domain to be associated with it. This field is mandatory, and used to ensure proper and secure communication between the TypingDNA Verify 2FA window and the origin website that initiated the Verify 2FA process. Provide the domain that will be hosting the front-end snippet that renders the Verify 2FA button.
It is important to set the correct domain, as using a different domain than what is configured will result in an error.
Once an account is set up in the Dashboard, the next step is to install an official TypingDNA client in the backend and configure it according to your preferences.
This guide will use the Verify 2FA JavaScript npm module within the sample code snippets. Support for additional technologies (JavaScript, Java, PHP/Python/C#/Ruby in progress) exists and is available on Github.
The first step in the backend integration process is to retrieve the TypingDNA Verify 2FA client. The NodeJS Verify 2FA client is installable via npm:
npm install typingdna-verify-clientOnce installed, the client is initialized, submitting account credentials generated in previous steps in the Dashboard as parameters (note: credentials differ between the sandbox and production environments):
const typingDNAVerifyClient = new TypingDNAVerifyClient({
clientId: "",
applicationId: "",
secret: ""
});Once initialized, the next step is to retrieve end-user data in the backend, for encryption and linking with the frontend button or iframe created in the next step.
The getDataAttributes method is called to pass credentials and encrypted user data to the frontend snippet. Both the language and flow are optional parameters, defaulting to 'en' and 'standard' respectively. Support for additional languages is in progress.
For setting up an integration without the use of RoT, you can specify disableRoT: true in the getDataAttributes options. Additionally when using this option you can specify a custom id other than email, or phone number (since we do not have to rely on email or phone number for the RoT phase). This can be any string that would help identify your user in your database.
const typingDNADataAttributes = typingDNAVerifyClient.getDataAttributes({
email,
phoneNumber,
language: 'en',
flow: 'standard' // 'show_otp' alternatively
disableRoT: false,
id,
});With the backend configured, the next step is to retrieve the frontend script that renders Verify 2FA either in a pop-up window, via a button, or in an iframe.
Retrieve the frontend JavaScript from the following link:
<script src="https://cdn.typingdna.com/verify/typingdna-verify.js"></script>There are two ways to display Verify 2FA on the frontend:
<button
class="typingdna-verify"
data-typingdna-client-id=typingDNADataAttributes.clientId
data-typingdna-application-id=typingDNADataAttributes.applicationId
data-typingdna-payload=typingDNADataAttributes.payload
data-typingdna-callback-fn="callbackFn"> Verify 2FA with TypingDNA
</button>There are two UI alternatives for the iframe integration. One suitable for more spacious user interfaces, with a fixed size of 468px per 598px, and a compact one, with a fixed size of 300px per 200px, suitable for narrow user interfaces.
<iframe
class="typingdna-verify"
data-typingdna-client-id=typingDNADataAttributes.clientId
data-typingdna-application-id=typingDNADataAttributes.applicationId
data-typingdna-payload=typingDNADataAttributes.payload
data-typingdna-callback-fn="callbackFn"
onClick="onTypingDNAVerifyButtonClickHandler();"
</iframe>The class, data-typingdna-client-id, data-typingdna-application-id and data-typingdna-payload are mandatory attributes for the frontend snippet. The values for the data-typingdna-client-id, data-typingdna-application-id and data-typingdna-payload attributes are to be retrieved from the backend. They are generated from the backend through the getDataAttributes function.
To use the compact form of the iframe, add the data-typingdna-compact attribute set to “on” in the iframe tag. If you want to use the standard one, don’t add this attribute at all.
In addition to the required attributes, optional values exist for additional configuration:
typingdna-method: This attribute defines the HTTP method (POST or GET) used to communicate with Verify 2FA. With POST (default), the end-user’s data will not be visible to them from within the window or iframe.
typingdna-callback-fn: If you're using the default flow data attribute, which is 'standard', the JavaScript function will be called and will contain the one-time password (OTP) necessary for validation. In the case of an error, the error details will be returned as a parameter instead. For security reasons this function will not be called if you are accessing an http website. The site needs to be accessed from https.
The callbackFn function will be called with the following parameters:
{ payload: { success: 1, otp: '123456'} }{ payload: { success: 0, error: 'Internal server error'} }Note: iFrames come with additional security concerns that you should consider. The iFrame display mode should only be used for up-to-date and secure browsers. For older browsers please use the pop-up display mode. Always make sure to take the necessary precaution measures to mitigate all security threats when using iFrames.
The OTP is generated during the Verify 2FA process for each enrollment and verification and is sent to the frontend in two ways, either to the JavaScript function typingdna-callback-fn or through the message event fired on the Window object by the Verify 2FA pop-up window or iFrame. If you use the callbackFn, see the description of the incoming information above. If you wish to listen to the message event, the data being sent has the following parameters:
Note: no matter which method is used, the data is sent only to the domain associated to the Application, in order to ensure a secure communication. See the section Create an Application for more information.
Once the OTP is generated by Verify 2FA and sent to your frontend, this needs to be verified in the Verify 2FA API and validate the user. In order to do this, you can use the method validateOTP of the TypingDNA Client, as in the following example:
const { success, code, message } = typingDNAVerifyClient.validateOTP({ email }, otp);See the section API Services - Validate an OTP for more information on the returned values.
The methods available in the Verify 2FA client and their function are as follows:
getDataAttributes({ email, phoneNumber, countryCode, id, disableRoT, language, flow }): A helper method that wraps every required data-attribute on the frontend. This is a helper method that returns all the attributes needed to open the Verify 2FA pop-up or load the Verify 2FA iframe.
validateOTP({ email, phoneNumber, id, countryCode }, code): This method is used in the client’s backend to finalize the flow and validate the OTP the user has submitted. The function calls the TypingDNA code validation service and returns either a success or failure. Upon a successful code validation, the end-user is considered verified. Note: Even when using Verify without RoT, it is mandatory to call the typingDNAVerifyClient.validateOTP() method with the appropriate user identifier (email, phoneNumber or id) that was used to initialize the flow
sendOTP({ email, phoneNumber, countryCode }): This method manually triggers the sending of a verification code from the client’s backend to the user’s email or phone. This bypasses the Verify 2FA window’s typing verification flow, and is useful for scenarios in which users cannot type to confirm their identity, such as access via a mobile device. Available only if RoT is enabled (default).
By default, end-users will be served the Verify 2FA window in English. This can be changed via the language parameter of the getDataAttributes method of the Verify 2FA backend client, or manually by the user. Support for additional languages is in progress and the table will be updated as new languages become available. If you have a request for a language not present here, please let us know.
| Language | Code |
|---|---|
| English | en |
| Spanish | es |
| Portuguese | pt |
| French | fr |
| Code | Status | Message |
|---|---|---|
| 104 | 400 | Invalid request body |
| 105 | 400 | Invalid client id |
| 106 | 400 | Invalid application id |
| 107 | 500 | Internal server error |
| 108 | 400 | Request has expired |
| 109 | 400 | Missing user identifier |
| 116 | 500 | Error validating OTP |
| 124 | 400 | Unauthorized request |
| 126 | 401 | Operation not allowed |
| 135 | 400 | Maximum number of active users reached |
A TypingDNA client with admin privilege can reset any user from the TypingDNA Verify 2FA integration “User management” menu.

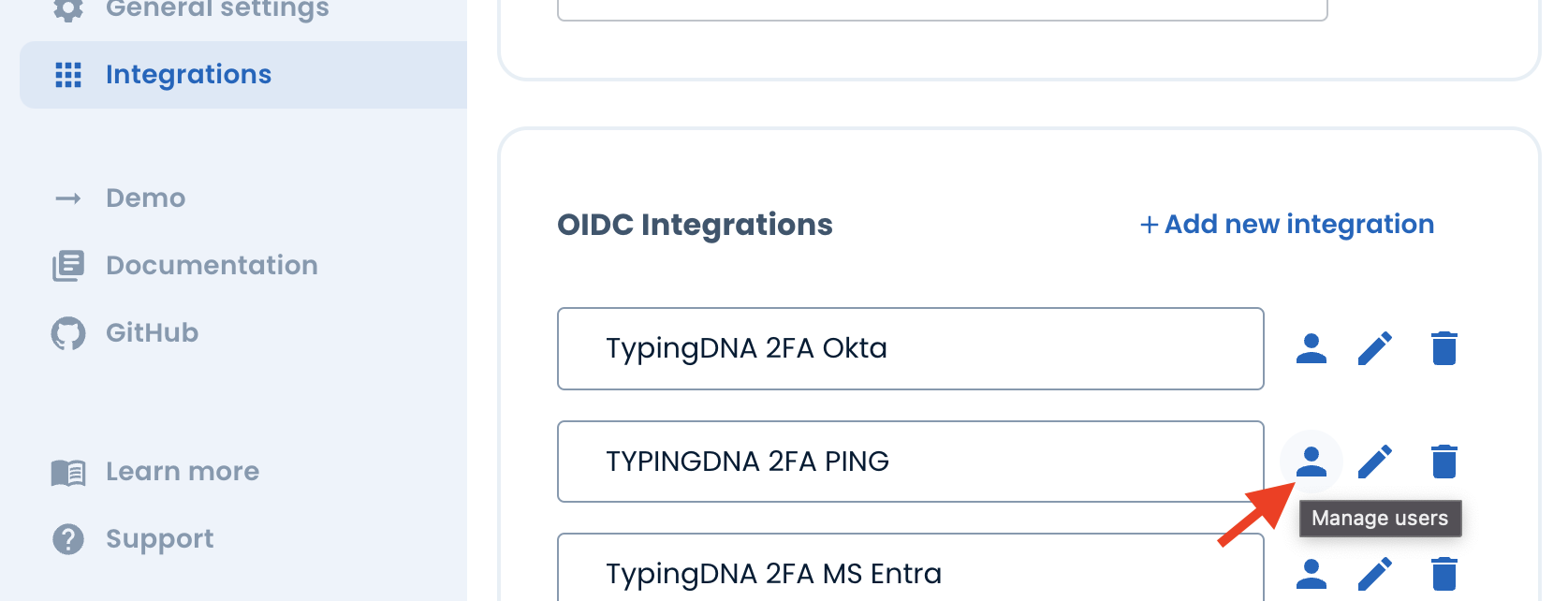

Go to your TypingDNA dev/client account, in the Verify 2FA tab and find the integration that you are using then click the user icon.

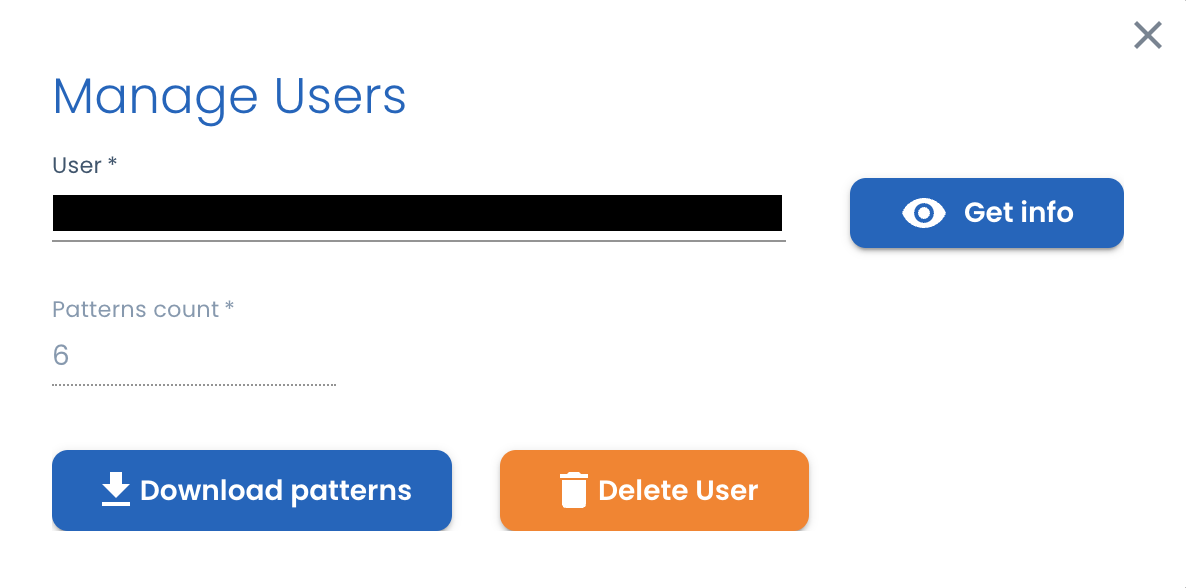

Enter the userId that is used in your IAM, and click Get info. Once the information is retrieved, you can Delete User, or Download their data.
For a limited time (after each request) you can access logs directly from us. Go to your TypingDNA dev/client account, in the Verify 2FA tab and find the Logs menu on the left. Then, choose your integration type and Client ID, and you should be able to see, and Export your logs.
We highly recommend that you make copies of all logs, and do not rely on TypingDNA’s stored logs for more than 1 month.
In the General settings you can set up the SMS and Email vendors that can be used for the RoT channel by the Standard integration type. Also, you can set up a custom logo to be included in the user interface.
Each Verify 2FA account can use 2 different environments: a Sandbox (default, limited bandwidth, for testing) and a Production environment. All TypingDNA accounts come with a Sandbox environment, but you need to have a Pro/Enterprise account in order to get access to the Production environment.
